Activated biomass carbonization making plant ,gasification system to output charcoal

FOB Reference Price:Get Latest Price
US $1-2,000,000 / Plants | 1 Plant/Plants (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Material:
Coconut Shell
Application:
Chemical Industry
Shape:
Briquette
Type:
Activated Charcoal
Supply Ability
Supply Ability:
5 Plant/Plants per Month
Packaging & Delivery
Packaging Details
export cartoon
Port
Shanghai
Lead Time :
2month

Specifications

C content is over 70% in charcoal got fromg biomass gasification plant .
good material to produce activated carbon.

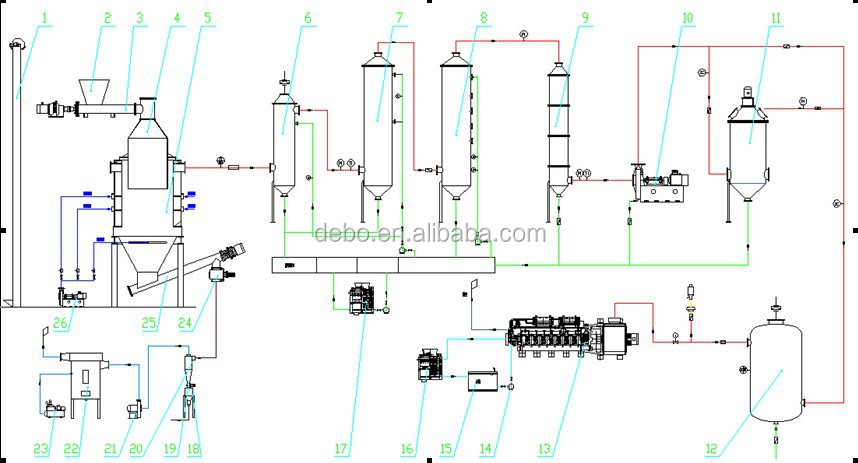

Comprehensively consider the characteristic of biomass gasification process and biomass to design 1000kw biomass gasification power generation system,we will use 1 unit downdraft biomass gasificationsystem with the capacity of 3000Nm3 gas and 2unit 500kw internal combustion gen-set .Coconut shell is constantly sent by feeding system to gasifier and react with a certain amount of air to produce fuel gas .the produced energy keep running temperature of system at 500~700. after the hot gas is cleaned and cooled down by cleaning system, it is piped to Internal combustion gen-set to output demanded power . To reasonable  design  the height and diameter of gasifier make sure good gasification condition and long residence time of biomass in gasifier in order to get high efficiency. The main technical process is shown by F1.








1. Gasifier 2. Carbon Ash release conveyor 3 .spray tower 4. Maze Scrubber 5. turbulence tower 6. Purify tower 7. induced draft fan 8. dry filter 9. buffer tank 10 internal combustion engine. 11 cooling tower . 12 ,water pool 13 cooling tower 14 Buffer storage of Carbon ash 15 air lock 16 cyclone 17 induced draft fan 18.Pulse filter 19 , air compressor



2.1 Main Technical Process

2.1.1Preparation of coconut shell

Required humidity of  should be less than 15%. Required size should be less than 3cm.After that,Satisfied biomass is sent into biomass storage room. And at least , it is necessary to store adequate biomass which is enough to support plant to run fro one week.

2.1.2 Coconut shell Gasification Process

Biomass is heat inside gasifier (temperature is around 600-700c) At the same time ,pyrolysis and gasification reaction happen so that biomass is converted into fuel gas .The main composition of fuel gas is CO,H2,CH4 etc. And some tar and dust are included in fuel gas . The heat value of fuel gas is 1000~1200kcal/Nm3.

2.1.3 Carbon Ash Release Process

 Semi-reaction carbon ash is released by rotary fire grate ,which is transported to be collected in storage room.

 2.1.4 Gas Purification Process

 Use water as media of purification process . Based on different  temperature and ash content in different stage , choose to use different wet purification device with different capability in order to well remove tar and dust till gas quality meet the demand of IC Gen-set.

2.1.5Power Generation Process

Cool and clean gas is piped to cylinder and mix with air to combust to produce electricity.
