CE approved wood gasification boiler 1mw biomass gasification power plant wood gas generator

FOB Reference Price:Get Latest Price
US $1-100 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
DEBO
Model Number:
DB-L-3000
Type:
Refuse Collector, Waste Gasifier
Supply Ability
Supply Ability:
3 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Carton
Port
Shanghai
Lead Time :
60days





Product Description







 At Present, Our Company can have biomass gas multiple production . after we use biomass gas to output electricity , we can have

 the ash(charcoal , ) be activated carbon. the marke value is very high . and the ash can be insulation material of steel mill. even , we can refine the liquid from circulation

to improve the quality of soil.

we have installed 1 unit biomass gasifciaton power generation system which output 1mw electricity and the charcoal is used to produce activaed carbon.



QQ20150306093333

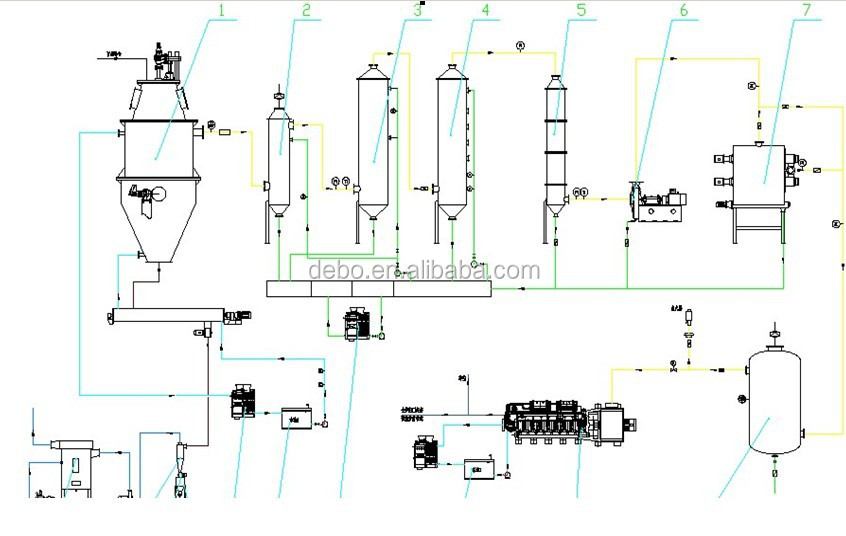

1. Gasifier 2. Carbon Ash release conveyor 3 .spray tower 4. Maze Scrubber 5. turbulence tower 6. Purify tower



7. induced draft fan 8. dry filter 9. buffer tank 10 internal combustion engine. 11 cooling tower . 12 ,water pool



13 cooling tower 14 Buffer storage of Carbon ash 15 air lock 16 cyclone 17 induced draft fan 18.Pulse filter 19 , air compressor













Type of Biomass Gasifier :  Downdraft fixed bed gasifier , Up draft fixed bed gasifier ,fluidized bed gasifier  . there are different features among them.



Application biomass : MSW, agriculture waste, forestry waste and so on.



Efficiency : 72% to 80%. give wood chips as an example, 1.2kg wood chips can produce 1kwh electricity .



Final output : power , charcoal , heat , steam , liquid .

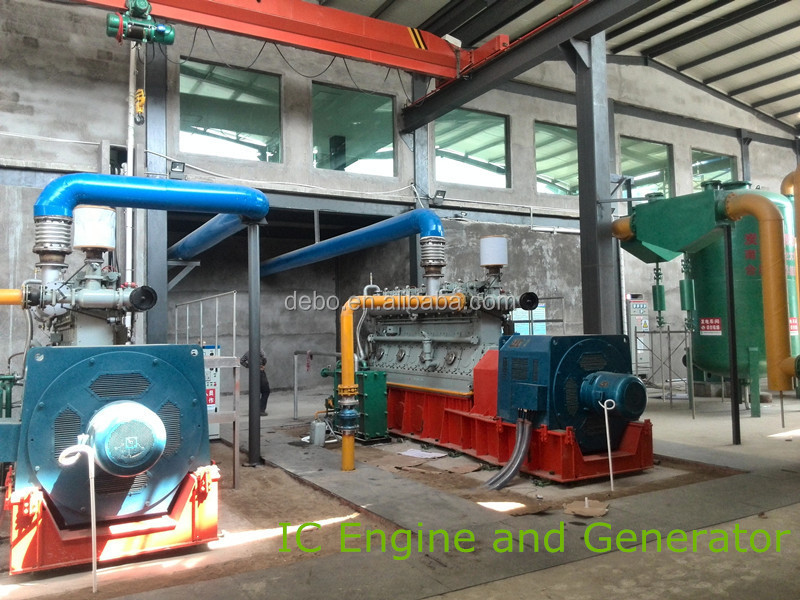

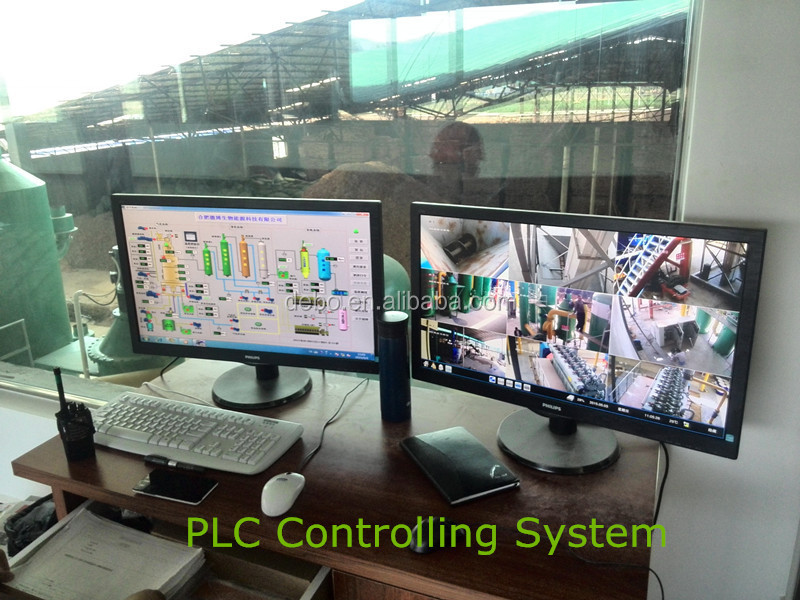

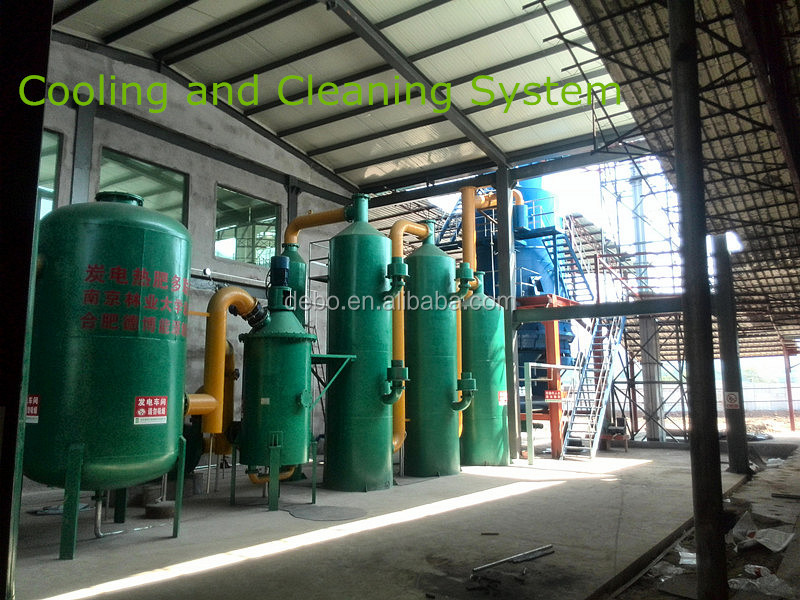

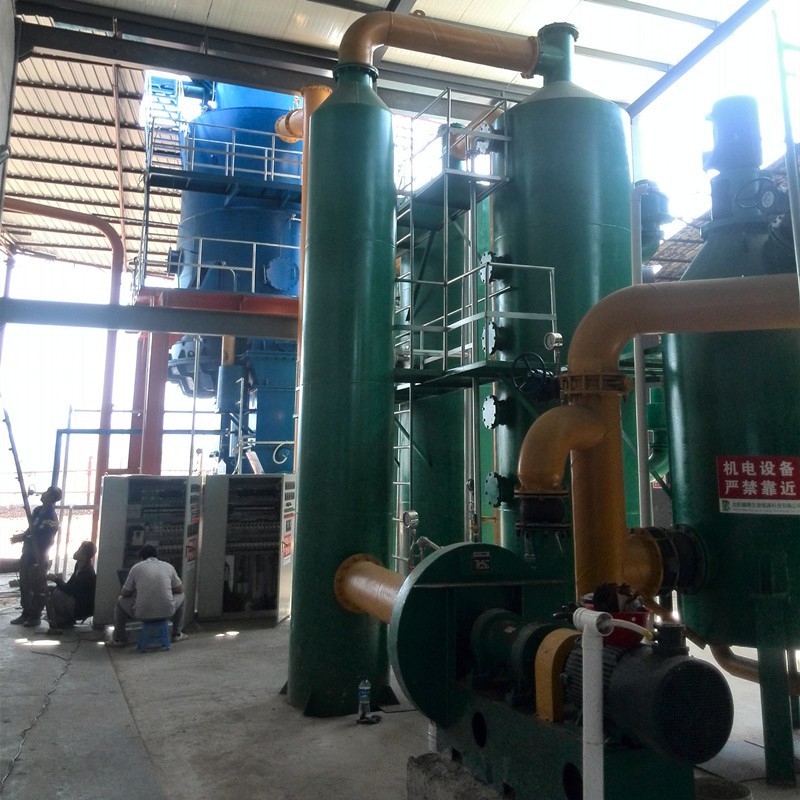

Project cases



IMG_20150503_105721__

IMG_20150503_105737__



IMG_20150503_110532__



HTB1SR9FHVXXXXcmXpXXq6xXFXXX3









Packaging & Shipping

 IMG_2730
