Biomass Fired boiler for Power Plant Waste Gasifier electric generator

FOB Reference Price:Get Latest Price
US $1-100,000,000 / Plants | 1 Plant/Plants (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
DEBO
Model Number:
DB-L-2000
Type:
Plant
Electricity Generator Type:
Biomass Gasification
Output Voltage (V):
400
Supply Ability
Supply Ability:
5 Plant/Plants per Month
Packaging & Delivery
Packaging Details
export carton
Port
shanghai
Lead Time :
2month



     Based on long term study , Hefei debo company already use the statics got from test to finish the designing and developing of biomas

s fluidized burning technology. The circulation fluidized bed boiler have below features:

1.         High Burning Efficiency. Under fluidized combustion , in Combustion chamber, gas-soild mixed well and improve the burning up

rate of semi-coke so that the burning efficiency is very high.

2.Wide adaptability, low requirement to fuels size and moisture. Simple fuel treating and feeding system . it can use the fuel that other

boilers can not accept .



3. Efficiently relief the problems caused by alkali metal. Because the fluidized boiler has the feature of fluiding and low temperature burning ,

it can efficiently arrest the passtium and Chlorine in order to relief the slag blocked and high temperature corrosion exsiting in the furnace and heat surface.



    At the moment, we Already installed  some running projects which use coffee residues, rice husk , and straw. Especially, the 75t/h circulation fluidized

boiler designed for high alkali metal biomass was already installed and pass the test of 72hours run in May, 2007. please look at F1. Till now, see

from the running status, boiler can work stably , reach all index, alkali metal problems are controlled efficiently, finish the purpose of designing.

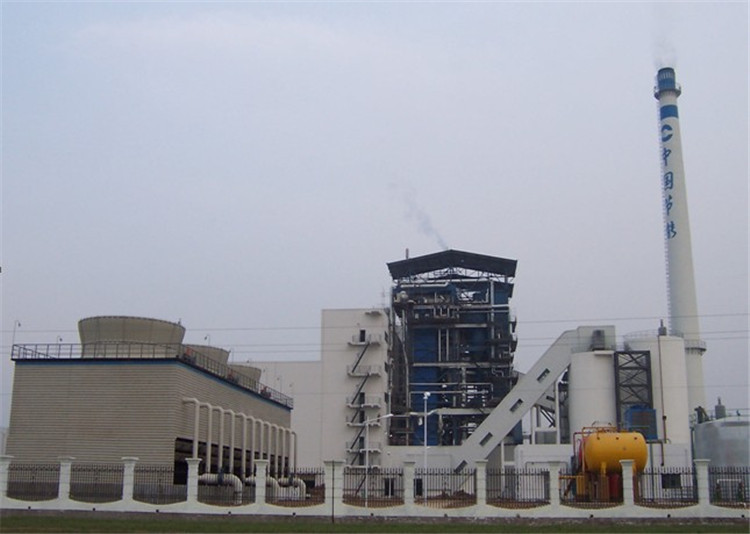

2 UNITS 220T BIOMASS POWER LANT (HIGH TEMPERATURE AND PRESSURE ) IN ZHANJIANG, GUAGNDONG ,THE MOST BIOMASS PLANT

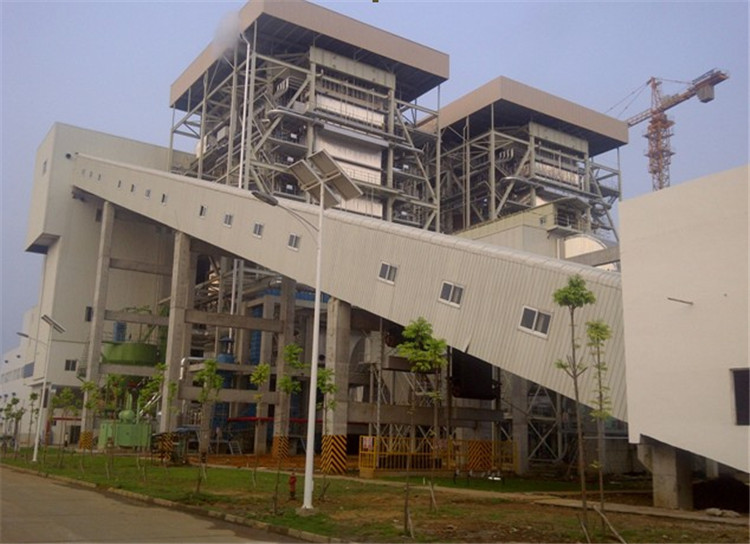

2X15MW BIOMAS CIRCULATION FLUIDIZED POWER PLANT

Hefei Debo Can also supply system, equipment for 6mw, 12mw and 25mw plant .Give 75t/h (15mw ) medium temperature



Product Description





and pressure boiler as an example.

The parameter is below :

Boiler model: G-75-3.82/S1

Rated vapor amount : Kg/h 75000

Outlet Overheat steam pressure Mpa 3.82

Outlet Overheat steam temperature ℃ 450

Working pressure of boiler Mpa 4.37

Economizer inlet pressure Mpa 4.61

Feeding water temperature ℃ 150

Emission rate % 1

Cool water temperature ℃ 20

Boiler efficiency % >90

Straw consumption t/h 18





projects lists

 2x1.5mw biomass plant in suqian

2units 75t/h medium temperature and pressure power plant in suihua ,heilong jiang .

2 units 75t/h medium temperature and pressure power plant in liucheng ,guangxi

 1 unit 75t/h sub-high pressure biomass plant in hunan.

 2 unit medium temperature and pressure power plant in chizhou, Jiangsu

 2 units 220t high temperature and pressure biomass power plant in Zhanjiang, guangdong

1unit 75t/h sub-high pressure plant in liang ,hunan.

 2 unit 75t medium temperature and pressure biomass plant in danyang ,Jiangsu

1unit 75t medium temperature and pressure in dushi,wuhuan

 2 units 75t medium temperature and pressure biomass plant in yantai.

1 unit 90t sub-high temperature and pressure in honghu,hubei

1unit 90t sub-high temperature and pressure biomass plant in heng yang , hunan .

 2unit 120t high temperature and pressure in dishen,guangxi

 2unit 75t sub-high temperature and pressure biomass plant in cong zuo,guangxi

 1 unit 130t.h sub-high temperature and pressure biomass plant in shangyu ,Zhejiang .

1 unit 40t/h medium temperature and pressure biomass plant in Zhejiang

 2 unit 75t/h medium temperature and pressure biomass plant in hubei

2 unit 130t.h biomass plant in zaoyang .
